Ge Dryer 4 Wire Connection : Power cord 30 amp 4 wire for ge dryer.. Power cord 30 amp 4 wire for ge dryer. The cord set selected should have only 3 wires (line 1, line 2 and neutral; Electrical question from correnda about wiring diagram background: 365 day right part guaranteed return policy. Connect the cord set to the terminal block at the rear of the dryer.
4.8 out of 5 stars. Left and right arrows move across top level links and expand / close menus in sub levels. Ge® 4 diameter flexible foil 8' clothes dryer transition duct with 2 clamps, pm8x73. Simplify installation of your dryer with cording that meets the precise length and wire gauge requirements. Dryer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local frghv lq dffrugdqfh zlwk wkh 1$7,21$/ (/(&75,&$/ code, ansi/nfpa no.
4 Wire Diagram For Dryer from i0.wp.com Ge® 4 diameter flexible foil 8' clothes dryer transition duct with 2 clamps, pm8x73. Find ge dryer wire, receptacle & wire connector replacement parts at repairclinic.com. Ge dryer motor wiring diagram from tse3.mm.bing.net to properly read a cabling diagram, one provides to learn how typically the components in the system operate. Ground wires must be connected correctly to ensure that the dryer is properly grounded. A wiring diagram is a simplified traditional photographic depiction of an electric circuit. #2 · aug 5, 2008. 365 day right part guaranteed return policy. Connect the cord set to the terminal block at the rear of the dryer.
The connections on your dryer should have three connection terminals.
Find ge dryer wire, receptacle & wire connector replacement parts at repairclinic.com. The connections on your dryer should have three connection terminals. Assortment of ge dryer wiring diagram. I want to replace it with a 4 prong cord i got with the standard green/red/black/white terminals. #2 · aug 5, 2008. Since january 1, 1996, the national electric Lets look a how the electric dryer is wired and what to do if your cord does not match the plug. Read strat wiring diagram 5 way switch gallery. These hot wires connect to the outer 2 connections the power terminal. This eliminates the possibility for a ground current traveling to the machine, as it features a separate return path for unused power. This article will explain what options you have to get your dryer wired and running. Correnda, a homeowner from lawrenceville,ga ad#blockquestion: On the dryer, the metal case of the appliance has a ground screw, and this is connected to the neutral wiring terminal of the dryer.
How to rewire your dryer from a 4 wire to 3 wire or vs versa hope you enjoy the video and share it !!! These hot wires connect to the outer 2 connections the power terminal. Ge dryer motor wiring diagram from tse3.mm.bing.net to properly read a cabling diagram, one provides to learn how typically the components in the system operate. Find ge dryer wire, receptacle & wire connector replacement parts at repairclinic.com. Do you have the wiring diagram for the placement of connectors for a ge dryer model # dbxr463eg1ww dave's reply:

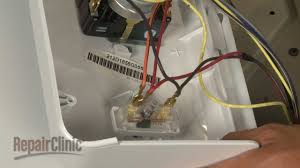

Ge Dryer Door Switch Replacement Repair We4m415 Repair Clinic from i.ytimg.com Do you have the wiring diagram for the placement of connectors for a ge dryer model # dbxr463eg1ww dave's reply: Simplify installation of your dryer with cording that meets the precise length and wire gauge requirements. Lets look a how the electric dryer is wired and what to do if your cord does not match the plug. This article will explain what options you have to get your dryer wired and running. On my ge dryer, a 3 prong cord is hooked up as shown on the picture. The connections on your dryer should have three connection terminals. The cord set selected should have only 3 wires (line 1, line 2 and neutral; The green wire needs to connect to the green wire from your cord and possibly the frame of the dryer.
I want to replace it with a 4 prong cord i got with the standard green/red/black/white terminals.

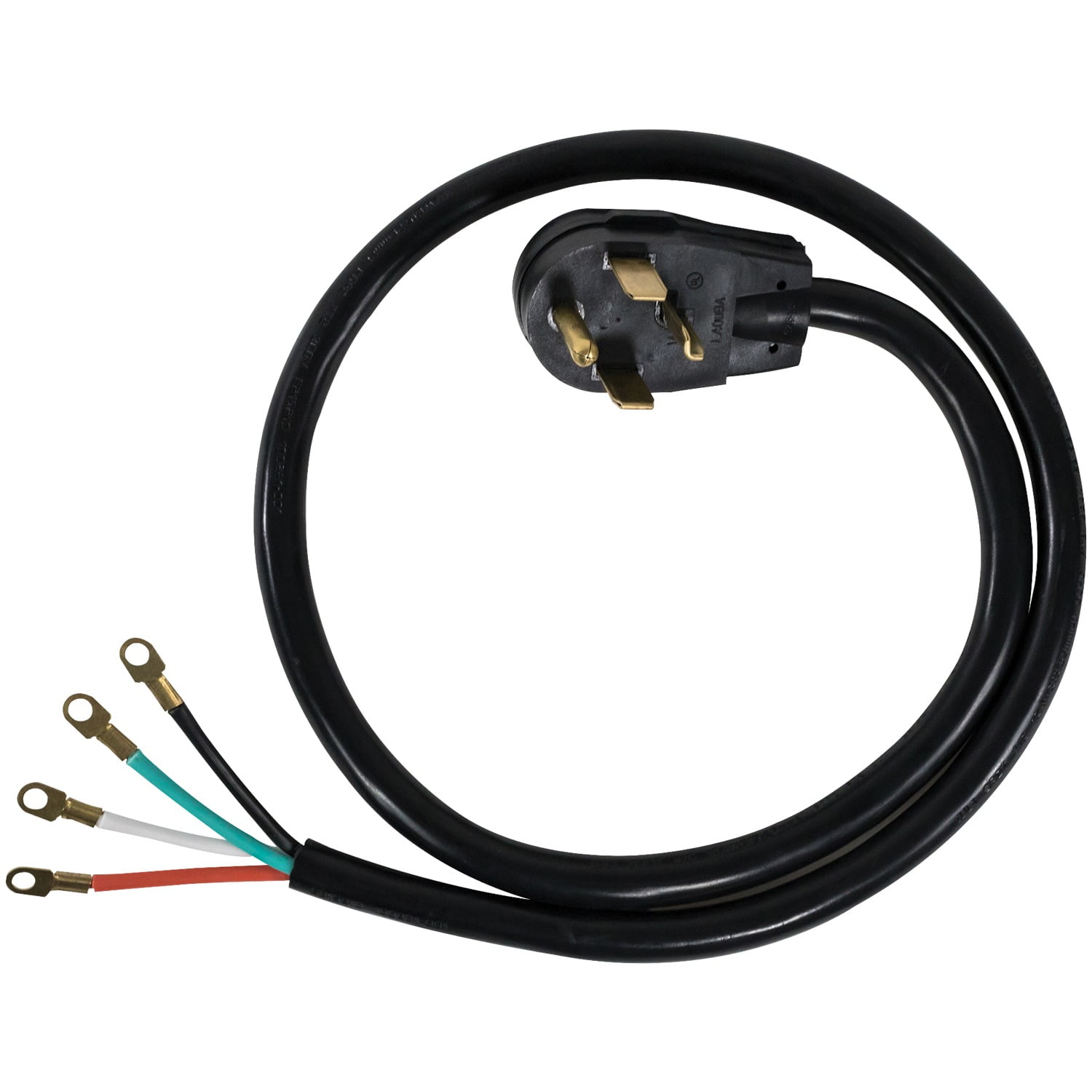

Each part ought to be placed and linked to different parts in particular way. The green wire needs to connect to the green wire from your cord and possibly the frame of the dryer. It shows the parts of the circuit as streamlined forms, as well as the power as well as signal links in between the tools. For instance , in case a module is usually powered up and it also sends out a new signal of half the voltage and the technician does not know this, he would think he has a challenge. Simplify installation of your dryer with cording that meets the precise length and wire gauge requirements. If not, the arrangement won't work as it ought to be. The connections on your dryer should have three connection terminals. These hot wires connect to the outer 2 connections the power terminal. Connect the white cord wire to the center neutral terminal. Ge wx09x10020 genuine oem 6ft. #2 · aug 5, 2008. Since january 1, 1996, the national electric Ge® 4 diameter flexible foil 8' clothes dryer transition duct with 2 clamps, pm8x73.
Connect the green cord wire to the ground screw. It shows the parts of the circuit as streamlined forms, as well as the power as well as signal links in between the tools. These hot wires connect to the outer 2 connections the power terminal. If a current happened to make its way onto the ground wire, it could travel up to the dryer. This eliminates the possibility for a ground current traveling to the machine, as it features a separate return path for unused power.
Ge Dryer Not Running Repair Guide from www.appliance-repair-it.com Connect the cord set to the terminal block at the rear of the dryer. On the dryer, the metal case of the appliance has a ground screw, and this is connected to the neutral wiring terminal of the dryer. For instance , in case a module is usually powered up and it also sends out a new signal of half the voltage and the technician does not know this, he would think he has a challenge. Ground wires must be connected correctly to ensure that the dryer is properly grounded. #2 · aug 5, 2008. Ge® 4 diameter flexible foil 8' clothes dryer transition duct with 2 clamps, pm8x73. Connect the white cord wire to the center neutral terminal. Left and right arrows move across top level links and expand / close menus in sub levels.
Connect the cord set to the terminal block at the rear of the dryer.
Ge® 4 diameter flexible foil 8' clothes dryer transition duct with 2 clamps, pm8x73. Since january 1, 1996, the national electric Each part ought to be placed and linked to different parts in particular way. Read strat wiring diagram 5 way switch gallery. I am a bit unsure of what goes where and why the ground is connected to white/yellow with a jumper on the current setup. 4.8 out of 5 stars. If not, the arrangement won't work as it ought to be. Connect the green cord wire to the ground screw. On my ge dryer, a 3 prong cord is hooked up as shown on the picture. Thanks for your electrical question correnda. If a current happened to make its way onto the ground wire, it could travel up to the dryer. Power cord 30 amp 4 wire for ge dryer. On the dryer, the metal case of the appliance has a ground screw, and this is connected to the neutral wiring terminal of the dryer.
Ge dryer motor wiring diagram from tse3mmbingnet to properly read a cabling diagram, one provides to learn how typically the components in the system operate ge dryer connection. The ground to neutral wire from the lead on top of the terminal block should be connected on the middle terminal along with the white neutral wire from the power cord when connecting a 4 prong plug.
